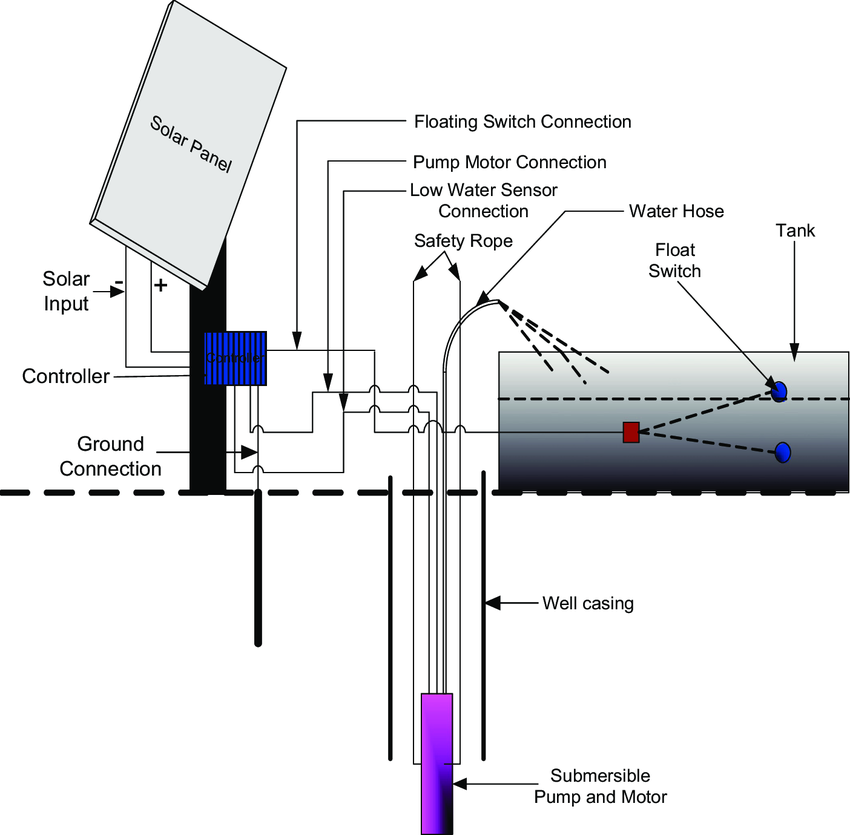

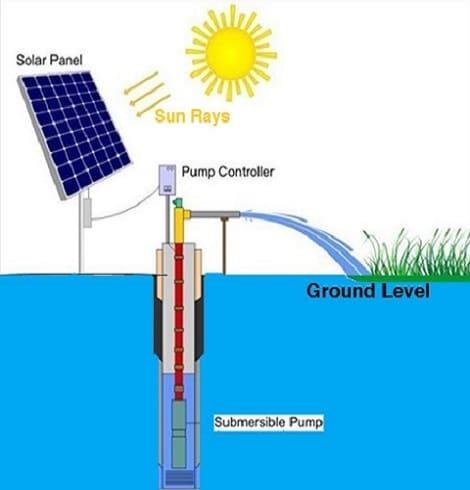

Working Principle of Solar Water Pump
The photovoltaic principle is the foundation of how a solar pump operates. PV (photovoltaic) systems capture radiant solar energy and convert it into electricity when a solar pump is operating. The entire system receives electricity supply as a result of this.
The PV system’s output of direct current is changed into alternating current by the pump’s inverter, which powers the pump. To achieve the highest power point tracking, these inverters also modify the output frequency and voltage in real-time in accordance with variations in the sunlight intensity.
The water lifting system realises the function of switching the municipal electricity that serves as auxiliary energy for the water lifting system as the sunlight’s intensity declines.
A submersible pump can be installed in huge wells and can lift water up to 650 feet. These pumps work directly to switch off batteries, solar panels, and, in certain situations, electricity, as long as the well water is more than 20 feet above the ground.
When the sun is out, the pump runs continuously, pumping water that is then stored in tanks for later use. Inclement weather prevents the sun from shining, which makes it impossible to pump water. As a result, it’s best to only store water in favourable weather conditions.
These types of solar pumps are typically utilised in undrilled, deep water. These pumps are also used for well pumping, irrigation, pressurisation, pond aeration, residential water systems, and livestock watering. 50m is the highest recommended pump depth.
